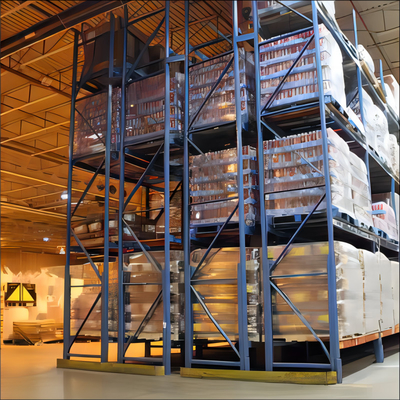

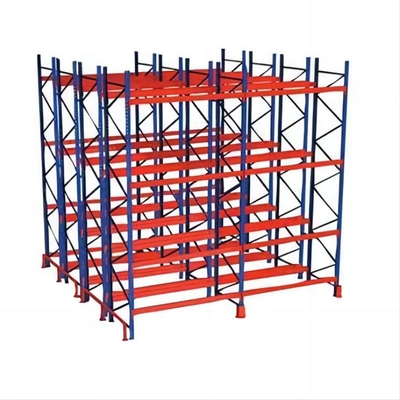

Customized Color Powder Coated Double Deep Warehouse Storage System Heavy Duty
| Place of Origin | China |
|---|---|
| Brand Name | Qifei |
| Certification | ISO9001；CE；SGS |
| Model Number | Double Deep Racking |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10 |
| Price | 50 |
| Packaging Details | Standard Export |
| Delivery Time | 20 days after deposit |
| Payment Terms | 30% deposit, 70% before delivery |
| Supply Ability | 8000ton/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | Warehouse Storage | Weight Capacity | 1000-4000kg/ Layer, 6000-21000kg/ Bay |
|---|---|---|---|
| Hs Code | 73089000 | Port | NANJING/SHANGHAI PORT |
| Surface Treatment | Powder Coating | Colors | Customized |
| Guarantee | 3 Years | Feature | Corrosion Protection |
| Standard | ISO, DIN, ANSI, JIS, BS And Non-standard | Scale | Heavy Duty |
| Height | 6500mm | Depth | 1200mm |
| Highlight | double deep pallet racking oem size,customized double deep racking system,customized color double depth racking |
||
Product Description
Product Description:

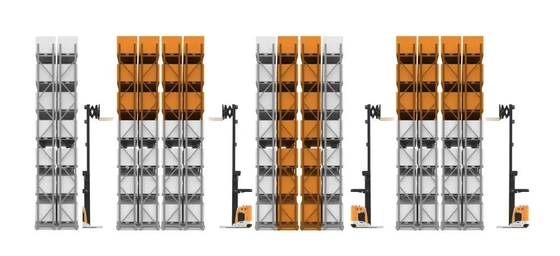

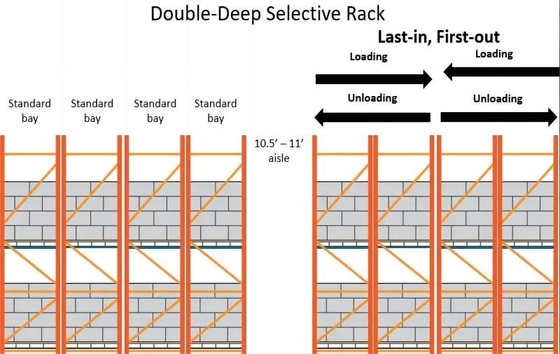

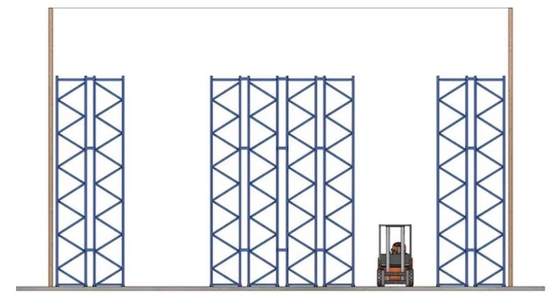

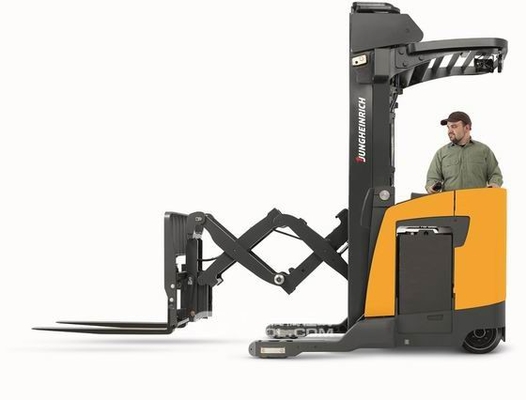

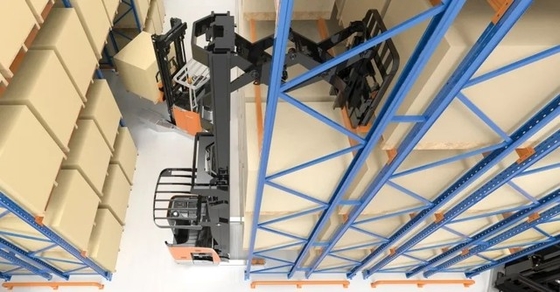

In situations where the SKU volume indicates you may require more pallet positions than standard selective pallet racking can produce, consider double-deep pallet racking. Double deep pallet racking is a simple and economical adaptation that places one row of 100% selective racking behind another. Using a deep reach forklift, the operator first places the rear pallet into the system and then places the other pallet in front of it.

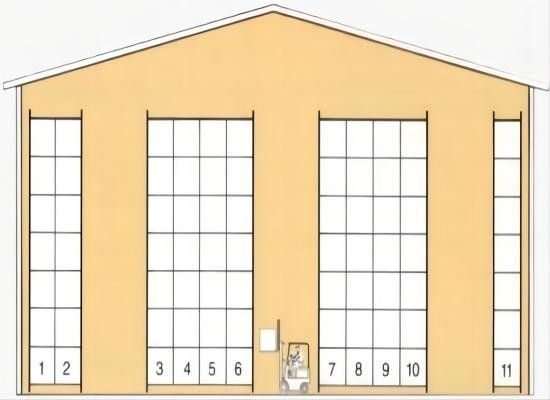

While the selectivity is reduced by one-half over standard pallet racking, twice as many pallets can be stored for a given number of aisles. These warehouse pallet racking systems increase the productive utilization of floor space by approximately 60% to 65%.
Double-depth storage racking has become a very popular choice for "high throughput" operations. It offers low initial cost, high productivity, good selectivity and less equipment damage.
Applications:
●Large Capacity SKU Storage Requirements
●Space is limited
●Combine selective and high density pallet racking at a lower cost
Parameters:
| Style | Warehouse Storage Pallet Rack |
| Selection | Double-deep |
| Dimension | Standard Pallet:1200*800 / 1200*1000 1100*1100 / 1066*1220 Depth:1000MM / 900MM / 1020MM Width: 2700MM / 2300MM / 2500MM / 2432MM Height::pitch is adjusted by increments of 75mm Customized Pallet:contact us directly |
| Upright | 80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75; 120*75; 120*87mm, Thickness:1.5~3.0mm |
| Beam | Height:80~160mm; Width:45mm/50mm; Thickness:1.5~2.5mm |
| Bearing Capacity | 5000KG per level max ; 1500KG per pallet max |
| Material | Q235B |
| OEM&ODM | Available |
| Surface Treatment | Galvanized/Powder Coating |
| Color | Customized |
| Sample | Available |
| General Use | Warehouse Shelving/Rack, etc. |
Packing and Shipping:
Packaging:
The Double Deep Pallet Racking product is carefully packaged to ensure safe delivery.
The uprights and beams are wrapped in protective foam and then securely strapped together.
The pallet racking components are then placed on a sturdy wooden pallet and shrink-wrapped to prevent movement during transportation.
