Rack Structure Widely Used Narrow Aisle Racking System With Guide Rail
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | QF-VNA | Material | Steel |
|---|---|---|---|
| Structure | Rack | Type | Pallet Racking |
| Mobility | Fixed | Height | 5-15m |
| Weight | 1000-4500kg | Closed | Open |
| Development | Conventional | Serviceability | Common Use |
| Color | Customized | Lead Time | 20 Days |
| Raw Material | Q235B | Surface Treatment | Galvanized/Powder Coating |
| Transport Package | Standard Export Packing | Specification | Customized |
| Trademark | Customized | Origin | China Nanjing |
| HS Code | 730890 | Supply Ability | 50000PCS/Year |
| Package Size | 1000.00cm * 1000.00cm * 1000.00cm | Package Gross Weight | 100.000kg |
| Highlight | Narrow Aisle Racking System,Guide Rail Narrow Aisle Racking System,Rack Structure Narrow Aisle Racking System |
||
Product Description

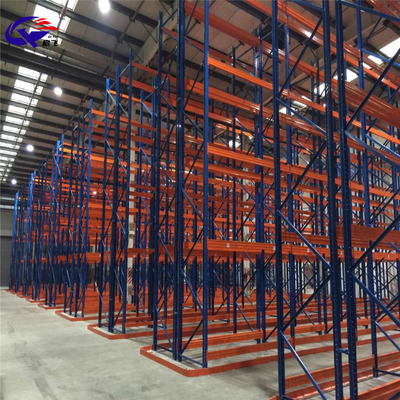

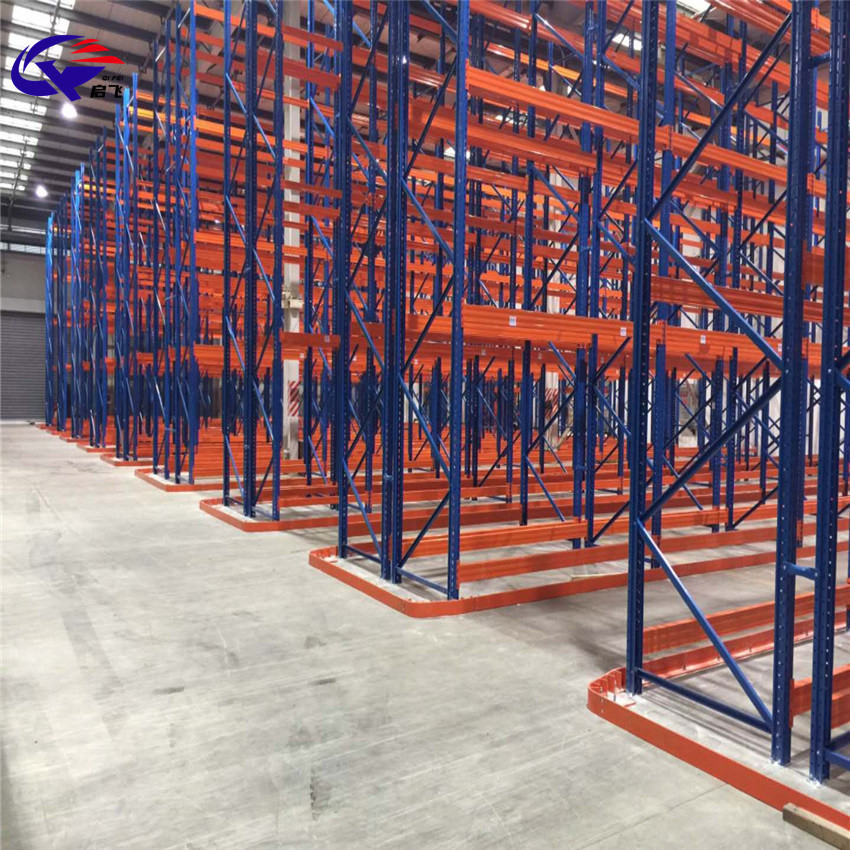

QiFei VNA(Very Narrow Aisle) rack:

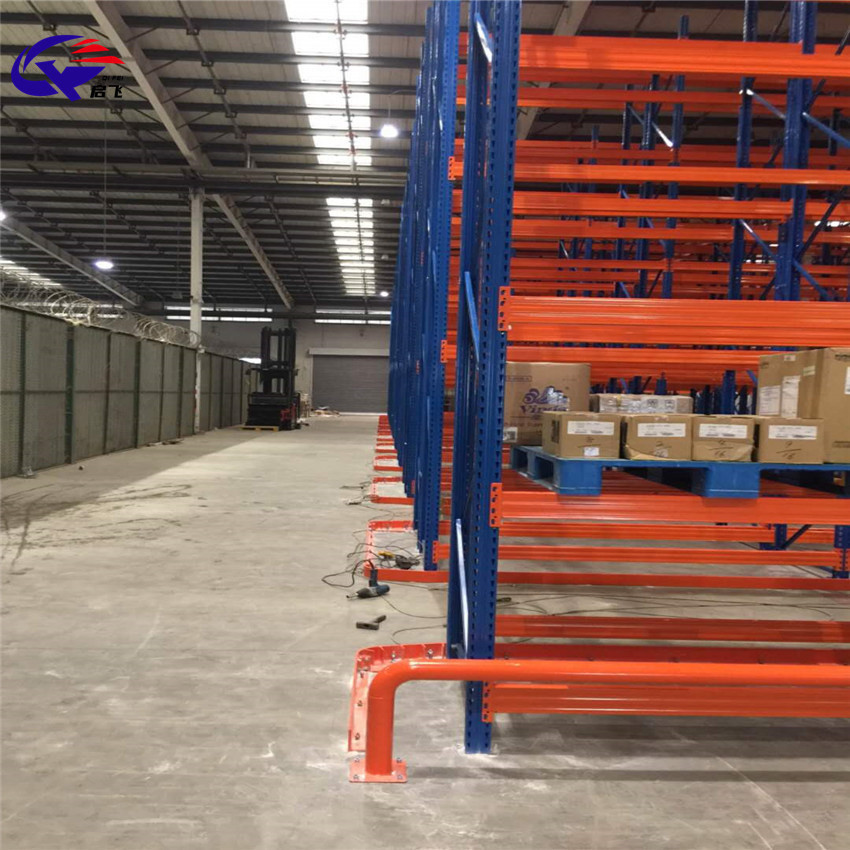

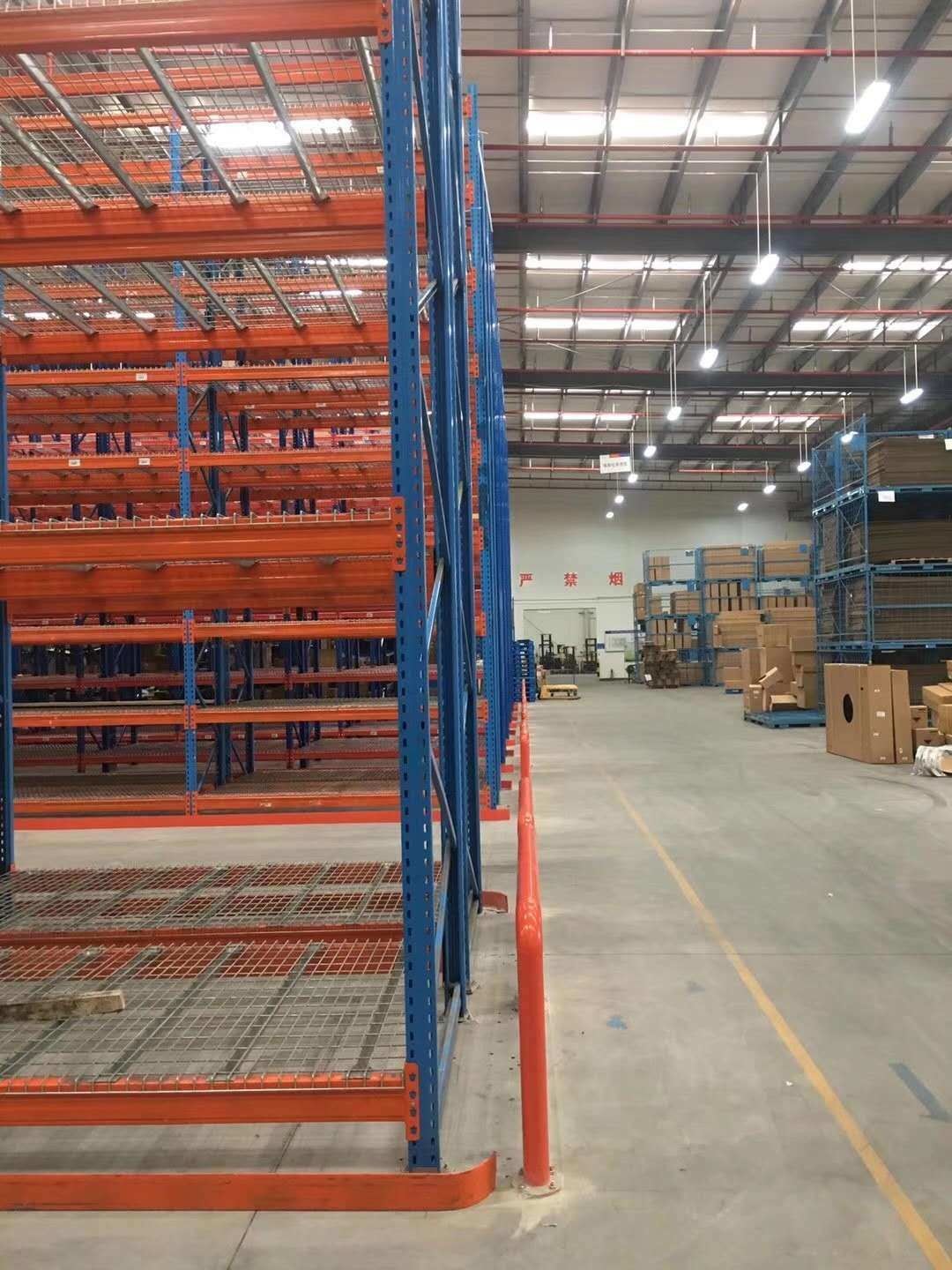

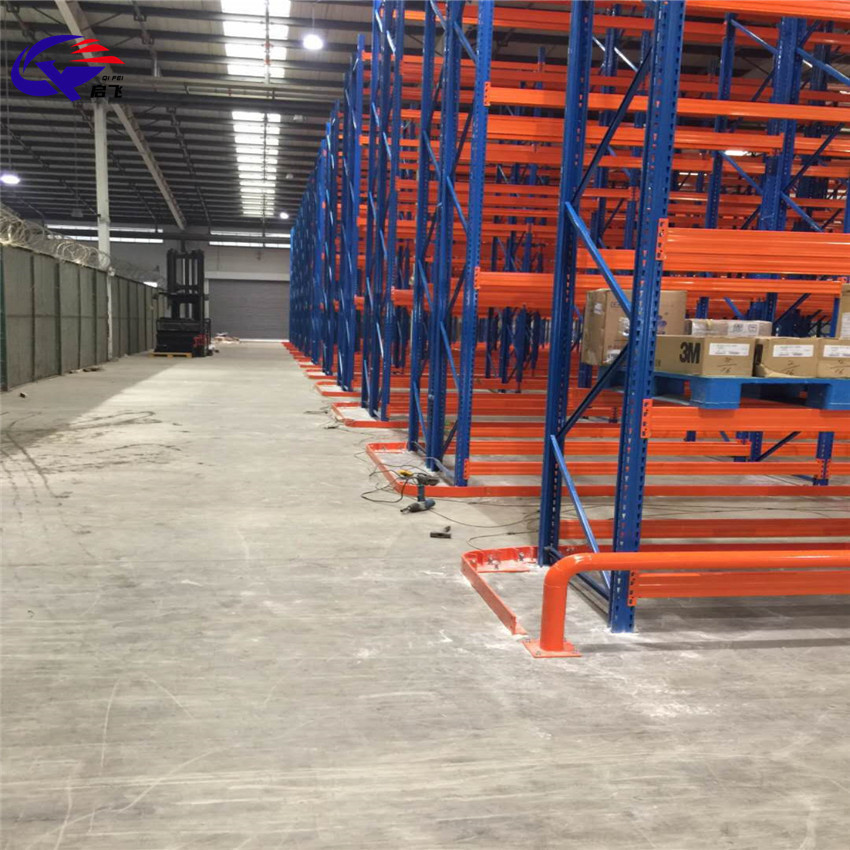

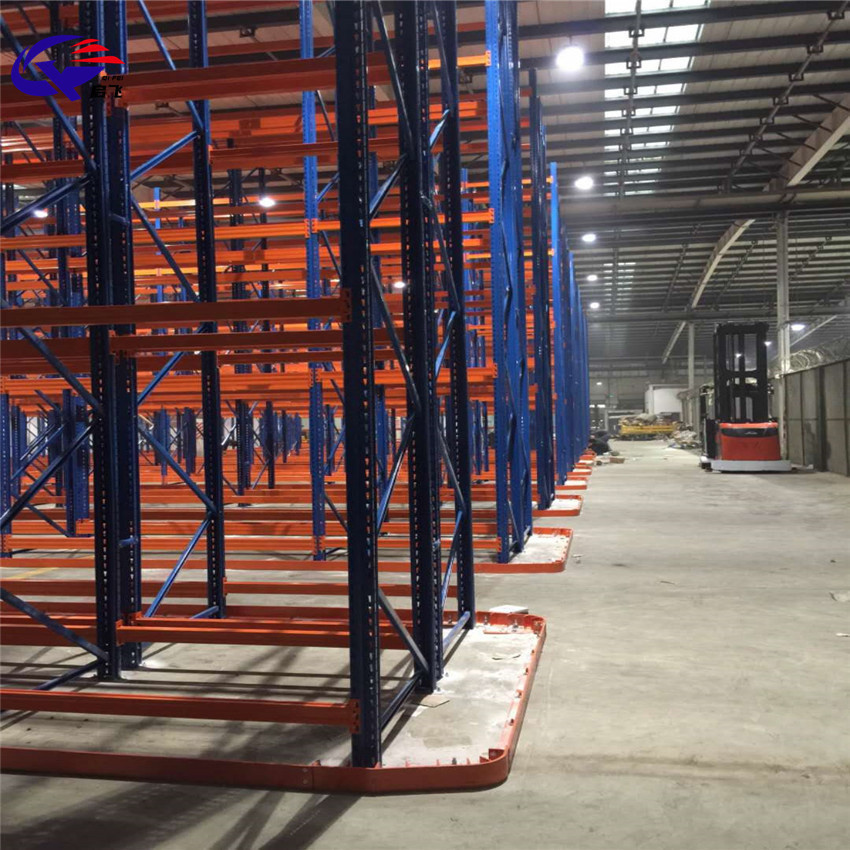

Comparing with the conventional pallet rack, VNA rack aisle is much narrower,ordinarily 1600-2000 mm, the space utilization rate will increase about 20%. Guide rails should be installed on both sides of aisle for the three-way forklift running.
Advantages
4) Strength and rigidity prevents compression damage to goods.
5) Bottom level of pallets can be stored on the floor, lowering structure costs.
6) Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire deckings, steel shelf, etc
1) This storage racking makes optimum use of floor area and roof height by providing high density storage
2) Pallets can be located,accessed and moved individually
3) The height between levels can be easily adjusted by 50 mm pitch interval4) Strength and rigidity prevents compression damage to goods.
5) Bottom level of pallets can be stored on the floor, lowering structure costs.
6) Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire deckings, steel shelf, etc
| Style | Warehouse Storage Pallet Rack |
| Selection | Single Row, back-to-back Rows and multiple Rows |
| Dimension | Standard Pallet: 1200*800(F) / 1200*1000(F) / 1100*1100(F) / 1066(F)*1220 Depth: 1000MM / 900MM / 1020MM Width: 2700MM / 2300MM / 2500MM / 2432MM Height: pitch is adjusted by increments of 75mm For Customized case, please contact us directly |
| Beam | Height:80~160mm; Width:45mm/50mm; Thickness:1.5~2.5mm |
| Upright | 80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75; 120*75; 120*87mm, Thickness:1.5~3.0mm |
| Bearing Capacity | 5000KG per level max ; 1500KG per pallet max |
Produce Process
WHY CHOOSE US
Package
Shipment
Welcome to visit our company
Q: Are you manufacturer or trading company?
A: We are experienced manufacturer in the warehouse storage industry.
Q: How is your delivery time?
A: Generally, it is within 25 days against formal order and deposit. It also depends on other factors such as order quantity.
Q: What is the payment term?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: What is your terms of delivery?
A: EXW, FOB
Q: Are samples available?
A: Yes, We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: What is the minimum order quantity?
A: Generally, MOQ is 10sets.
Q: Can I make my own brand and designed products?
A: Yes, we do both OEM and ODM, so you can make your own product with your own logo.
Q: Where is your factory? Can I visit it?
A: Our factory located in Nanjing, Welcome to visit our factory. We can arrange pick-up from the airport or train station for you.
Q: What parameters do I need to provide for an accurate quotation?
1) Quantity(set)
2) Size: Length*Width*Height (mm) or samples or technical drawings
3) Load capacity per layer(kg)
4) Number of layers
Q: What is the material being used for your products?
A: Mild steel Q235.
Q: I don't have drawing or picture available for the products, could you design it for me?
A: Yes, we can make the best suitable design for you but need to know more details.
Q: Do I get any guarantee from your company?
A: 3~10 years warranty
Q: How do you make our business long-term and good relationship?
A: Quality makes trust and reputation, plus competitive price to ensure our customers benefit ;
