Customizable 2000kg Capacity Heavy Duty Pallet Racking System in Powder Coated Finish

Source Manufacturer & Free Customized Design & One Stop Service


Product Description

Pallet rack is mainly used together with pallet and the common forklift.It is safe and convenient,can make full use of the space.

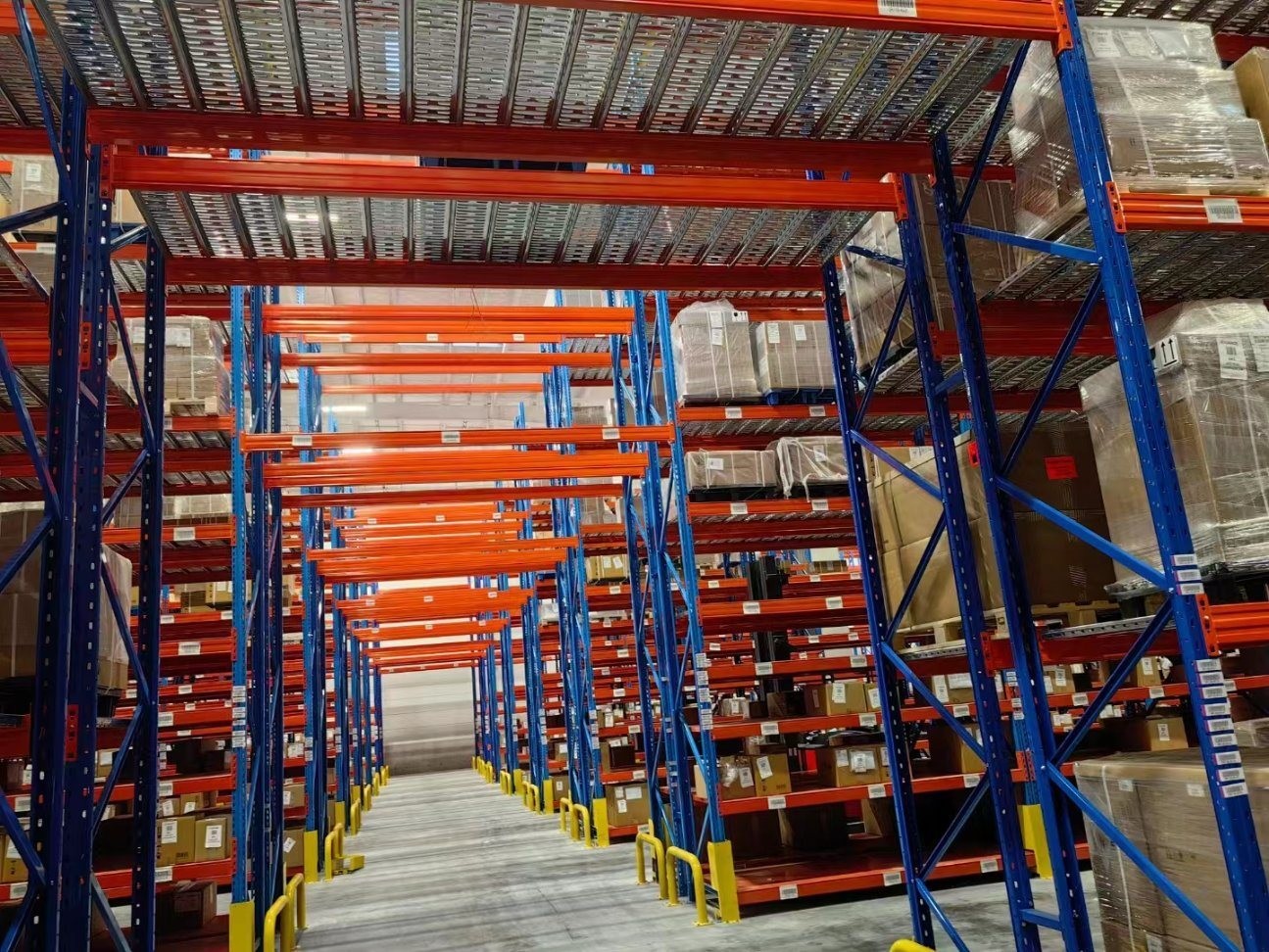

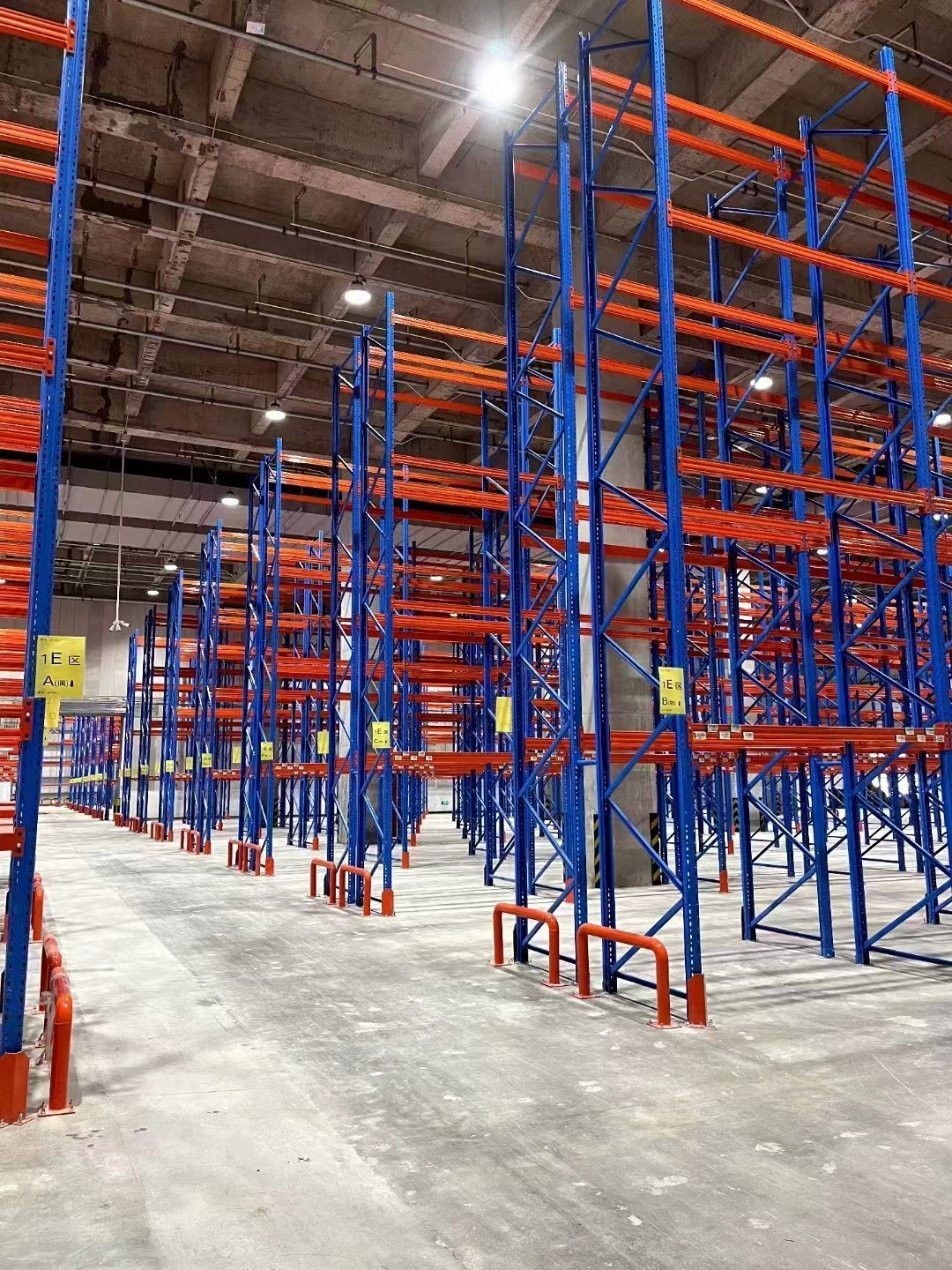

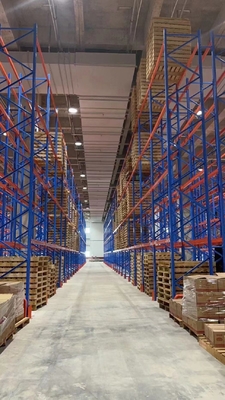

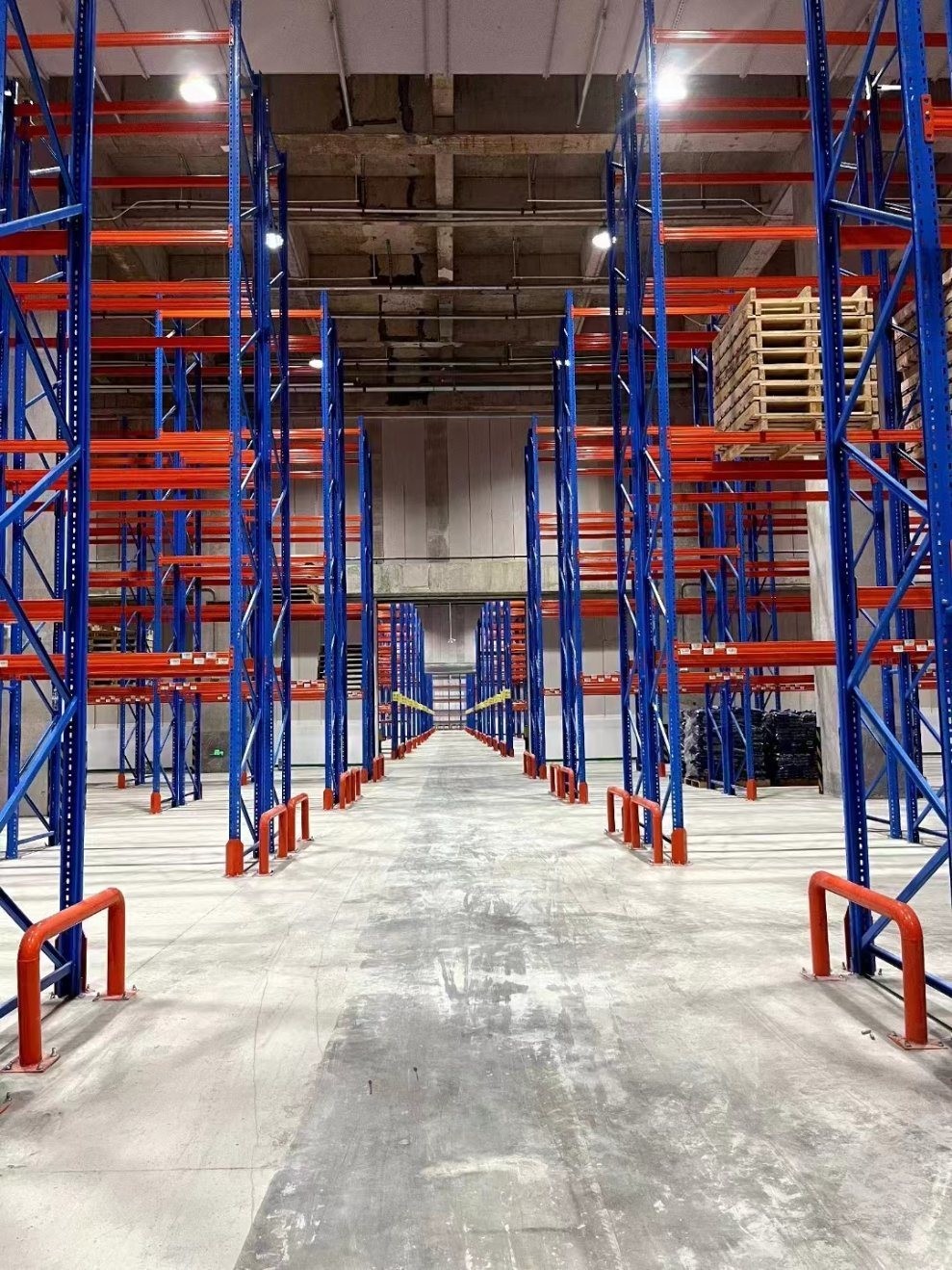

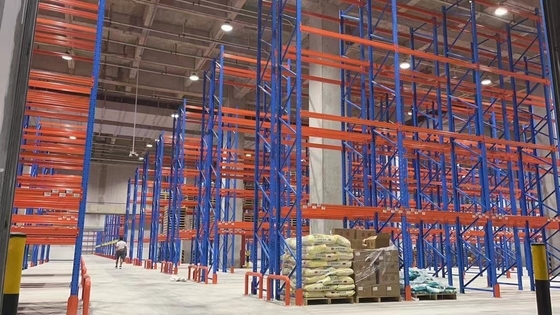

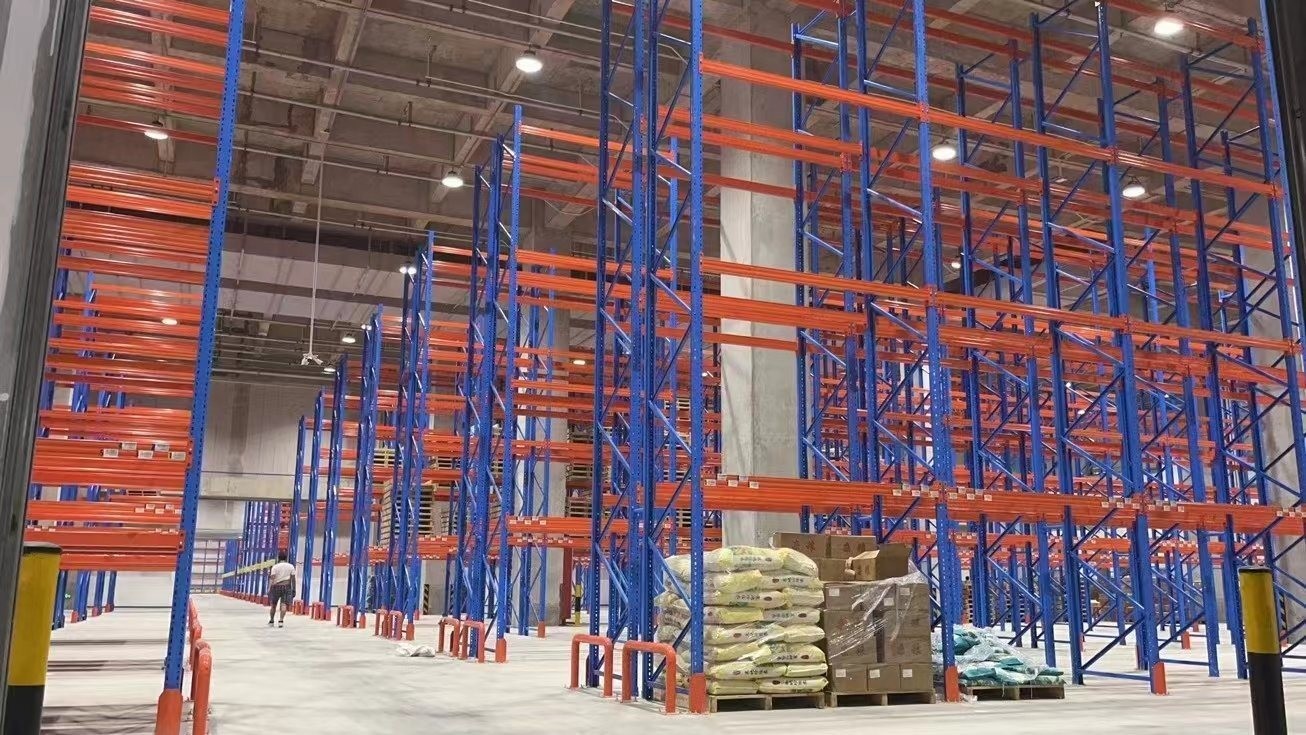

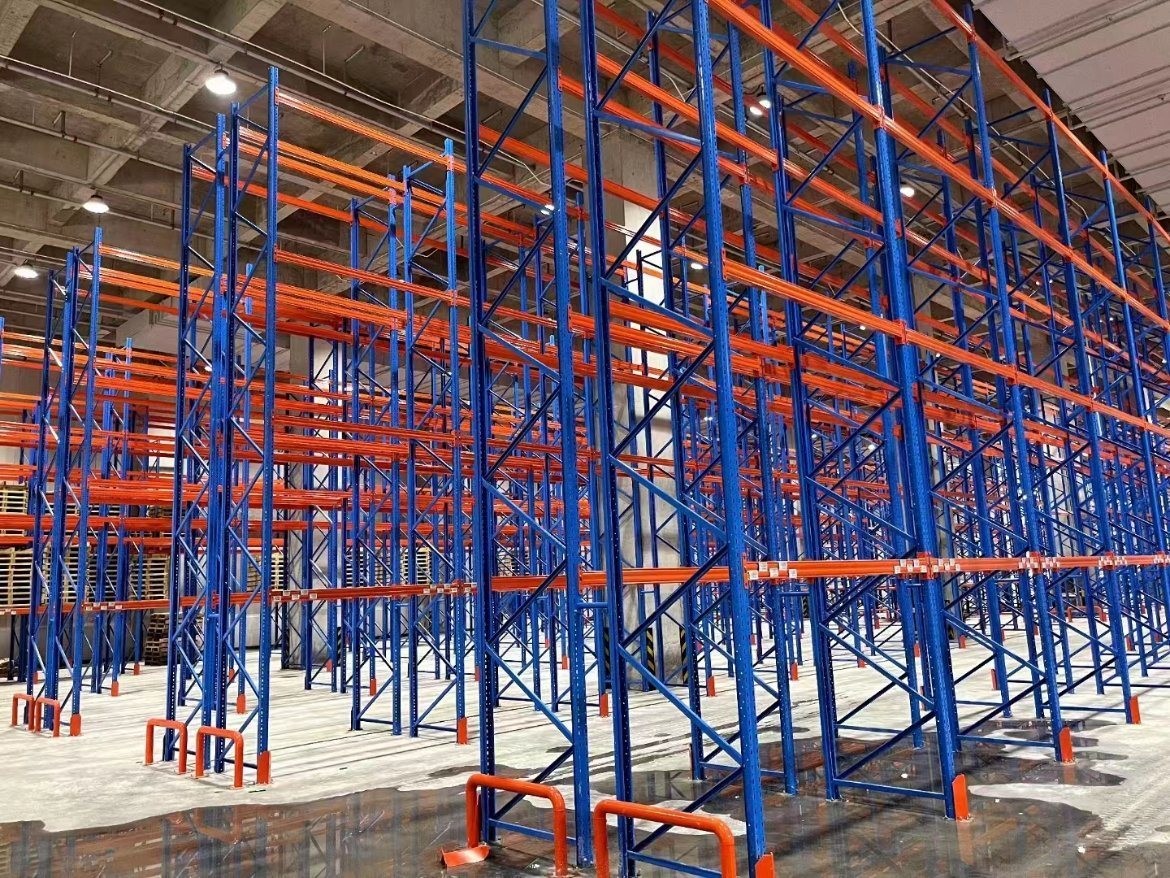

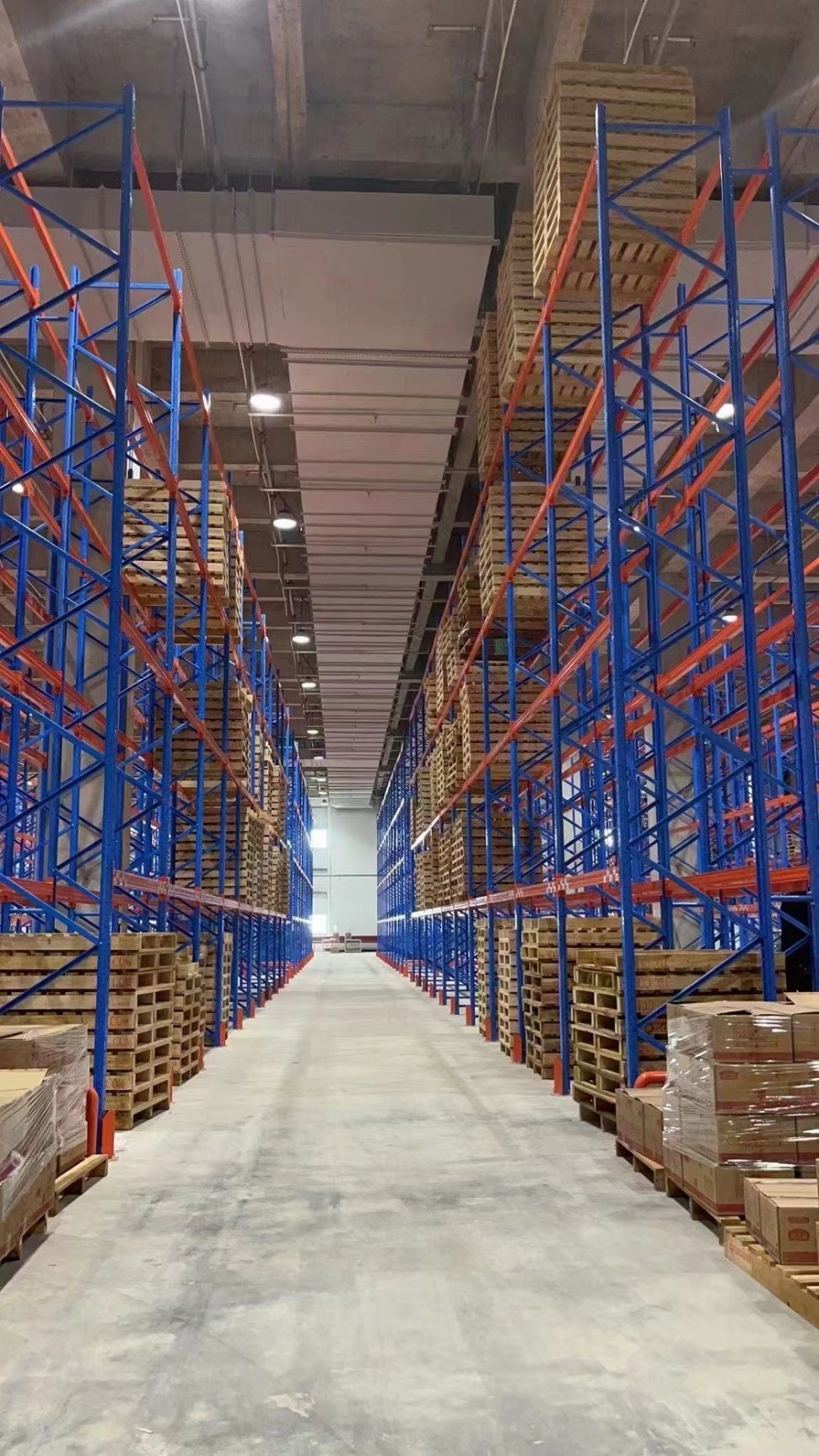

Selective pallet racking is the most common pallet racking system, It's use for large SKU or products in warehouses to save your warehouse space and area, allow you easy to loading and unloading your pallets. Usually has single rows placed at the walls and back-to-back rows placed in between.

Advantage:
More usage: Match with your industry with our selective pallet racking. It's easy to accommodate lift trucks, forklifts.
More space: Maximizes your warehouse space not just increased the warehouse area, but use pallet racking to enlarge space usage without extra cost.
More convenient: Direct access the pallet loading and unloading. By the rules of FIFO(First-in-First-Out) Selective pallet racking allow access to every pallet. Simple to install and reconfigure
More Cheaper: Save a lot money on your warehouse storage.

1. Horizontal Bracing   2. Diagonal Bracing   3. Upright Column                         4. Bolt for Base-Column Connect     5. Base Plate
6. Bolt Washer              7. Nut Cap                  8. Nut Cap for Bracing Connect   9. Bolt for Bracing Connect             10. Sleeve

Uprights

Upright Frame

The bolt-on pallet rack system consists of 2 perforated uprights (standard finish electrostatic epoxy blue RAL 5017). Lattice supports are made of unfolded C-shaped or tube profiles.
The uprights are provided with a base plate and are fixed to the floor by means of anchor bolts.


Beam

Beam consist of hollow profiles with beam end connectors welded to each end for connection to the uprights. Beam end connectors are available with 3 or 4 pins. The beams have electrostatic epoxy powder coating (standard finish orange RAL 2004). Safety pins can also be used to prevent the beam from unhooking.

QIFEI Storage offers two cross-section profiles for beams - interlocking beams and box beams.
The multi-bend design upgrades the rebar to beams of various sizes, while greatly reducing the mechanical side effects of deformation that have been shown in the past on long materials.
Under the same load-bearing capacity, different profiles will meet the needs of different markets and thus meet customer preferences.

Beam Connector

According to the beam section size, 3-hole or 4-hole hooks can be selected to meet different bearing capacity requirements. There is a safety lock at the connection to lock the beam. The safety lock is pre-installed at the factory, which improves the installation work efficiency and avoids the safety problem without a safety lock.
During the operation, since the forklift hits the beam, as long as the safety lock is not ejected, the beam will still be stuck on the column. Security risks can thus be avoided.

Pallet rack accessories
contains footplates,upright protector,wish mesh decking,row spacer,etc,you can purchase all the additional units of racking system from us,for your better warehouse storaging.
Qifei Storage offers all rack accessories to modify racks to fit stored products. Shelving accessories are often required for safe storage and warehouse operations. They provide additional functions for your shelves and warehouses such as support, protection, connection.

PRODUCE PROCESS

Welcome to visit our company

Q: Where is your factory? Can I visit it?
A: Our factory located in Nanjing, Welcome to visit our factory. We can arrange pick-up from the airport or train station for you.

Q: What parameters do I need to provide for an accurate quotation?
1) Quantity(set)
2) Size: Length*Width*Height (mm) or samples or technical drawings
3) Load capacity per layer(kg)
4) Number of layers

Q: What is the material being used for your products?
A: Mild steel Q235.

Q: I don't have drawing or picture available for the products, could you design it for me?
A: Yes, we can make the best suitable design for you but need to know more details.

Q: Do I get any guarantee from your company?
A: 3~10 years warranty

Q: How do you make our business long-term and good relationship?
A: Quality makes trust and reputation, plus competitive price to ensure our customers benefit ;
