Double Deep Warehouse Storage System Double Deep Storage Solution with 1000-4000kg Weight Capacity
Our Product Introduction
for more products please visit us on warehouse-rackings.com
Basic Information
Place of Origin:
China
Brand Name:
Qifei
Certification:
ISO9001；CE；SGS
Model Number:
Double Deep Racking
Minimum Order Quantity:
10
Price:
50
Packaging Details:
Standard Export
Delivery Time:
20 days after deposit
Payment Terms:
30% deposit, 70% before delivery
Supply Ability:
8000ton/year
Product Specification
Port:
NANJING/SHANGHAI PORT
Weight Capacity:
1000-4000kg/ Layer, 6000-21000kg/ Bay
Usage:
Warehouse Storage
Hs Code:
73089000
Guarantee:
3 Years
Purface Treatment:
Powder Coating
Colors:
Customized
Highlight:
powder coating selective pallet racking
,powder coating heavy duty pallet racking
More Images
Our Product Introduction
for more products please visit us on warehouse-rackings.com
Product Description
Product Description:
With a weight capacity of 1000-4000kg per layer and 6000-21000kg per bay, this Double Deep Selective Pallet Rack is perfect for storing heavy items such as machinery, equipment, and bulk products.
Our Double Deep Pallet Racking System is designed to make the most of your warehouse space, allowing you to store more products in less space. The double deep design means that you can store pallets two deep, which effectively doubles your storage capacity. This is perfect for warehouses that have limited space but a high volume of inventory to store.
Our Heavy Duty Double Deep Racking is also treated with a powder coating surface treatment to ensure that it is resistant to corrosion and rust. This means that your racking system will last longer and continue to look great even after years of use.
Applications:
Overall, our Heavy Duty Double Deep Racking is the perfect solution for any warehouse that needs to maximize storage space while still providing easy access to products. Its high weight capacity, double deep design, and powder coating surface treatment make it a durable and reliable choice for any warehouse storage needs.
Parameters:
| Style | Warehouse Storage Pallet Rack |
| Selection | Double-deep |
| Dimension | Standard Pallet:1200*800 / 1200*1000 1100*1100 / 1066*1220 Depth:1000MM / 900MM / 1020MM Width: 2700MM / 2300MM / 2500MM / 2432MM Height::pitch is adjusted by increments of 75mm Customized Pallet:contact us directly |
| Upright | 80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75; 120*75; 120*87mm, Thickness:1.5~3.0mm |
| Beam | Height:80~160mm; Width:45mm/50mm; Thickness:1.5~2.5mm |
| Bearing Capacity | 5000KG per level max ; 1500KG per pallet max |
| Material | Q235B |
| OEM&ODM | Available |
| Surface Treatment | Galvanized/Powder Coating |
| Color | Customized |
| Sample | Available |
| General Use | Warehouse Shelving/Rack, etc. |
Packing and Shipping:

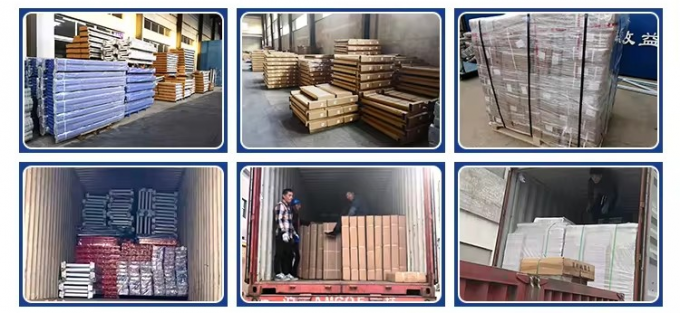

Packaging:
The Double Deep Pallet Racking product is carefully packaged to ensure safe delivery.
The uprights and beams are wrapped in protective foam and then securely strapped together.
The pallet racking components are then placed on a sturdy wooden pallet and shrink-wrapped to prevent movement during transportation.
Shipping:
