3 Inches Pitch Beam Powder Coated Sturdy Heavy Load Pallet Storage Tough Warehouse Racking Solution

Product Description:

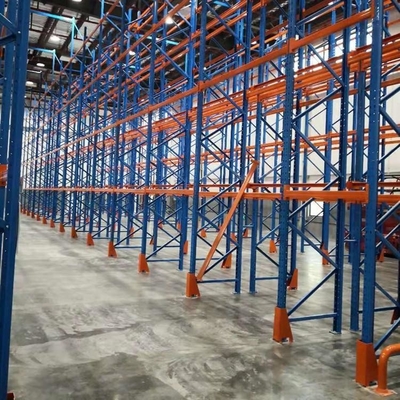

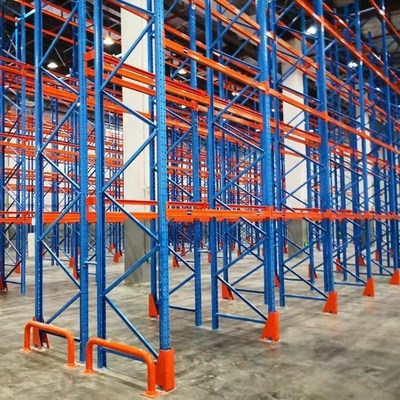

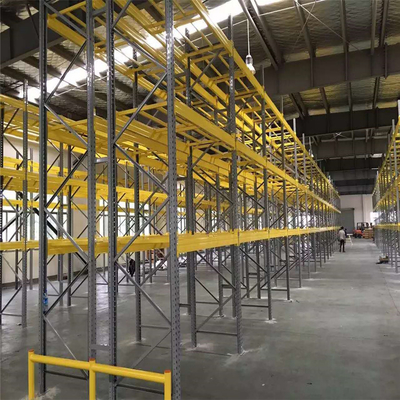

The 3″ pitch pallet rack is the most popular and versatile racking in the industry. It offers the best solutions for warehouses storaging palletized products and a wide variety of goods.
These 3″ pitch pallet racks with their high quality standards according to AS 4084 is very popular in the markets.


Features of Steel Storage Racking

• Individual access to all pallets to the full height of the warehouse
• Easy beam adjustment accommodates variable pallet heights
• Simple stock rotation
• Compatible with many handling equipment types
•

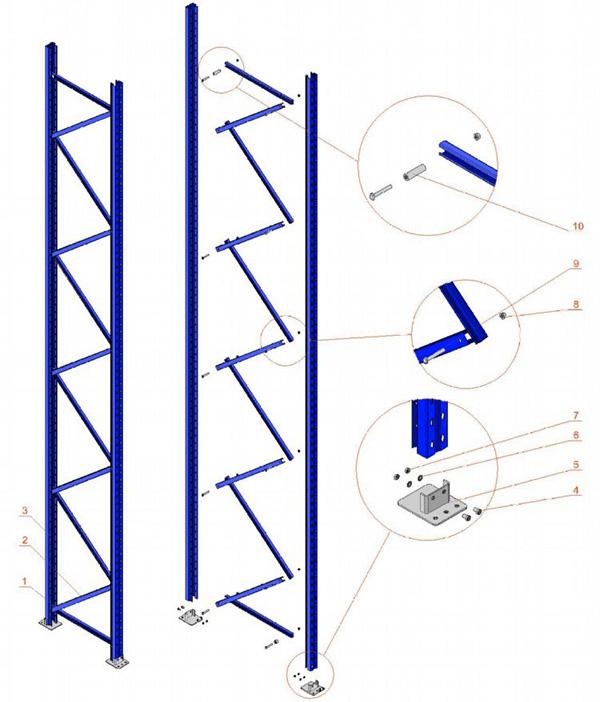

Main Structure of the 3″ pitch pallet rack:

1. Horizontal Bracing 2. Diagonal Bracing 3. Upright Column 4. Bolt for Base-Column Connect 5. Base Plate 6. Bolt Washer 7. Nut Cap 8. Nut Cap for Bracing Connect 9. Bolt for Bracing Connect 10. Sleeve



Upright Frame   The bolt-on pallet rack system consists of 2 perforated uprights (standard finish electrostatic epoxy blue RAL 5017). Lattice supports are made of unfolded C-shaped or tube profiles. The uprights are provided with a base plate and are fixed to the floor by means of anchor bolts.

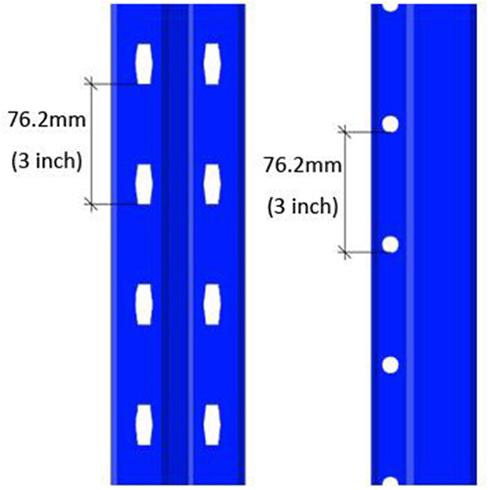

76.2mm Pitch Upright Column













This 3″ Pitch Pallet Rack follows Australian Standard AS4084-2012.

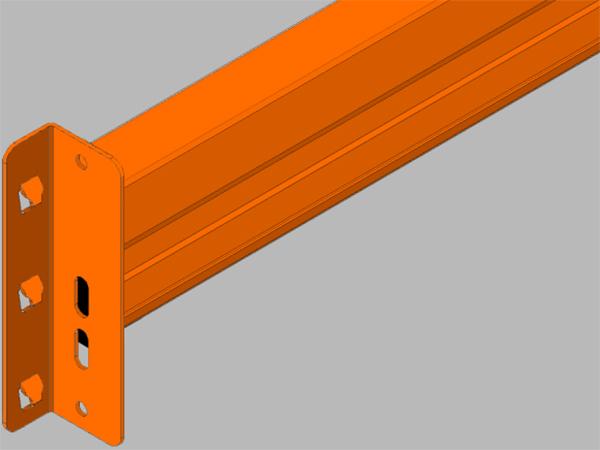

Beam
Beams consist of hollow profiles with beam end connectors welded to each end for connection to the uprights. Beam end connectors are available with 3 or 4 pins. The beams have electrostatic epoxy powder coating (standard finish orange RAL 2004). Safety pins can also be used to prevent the beam from unhooking.

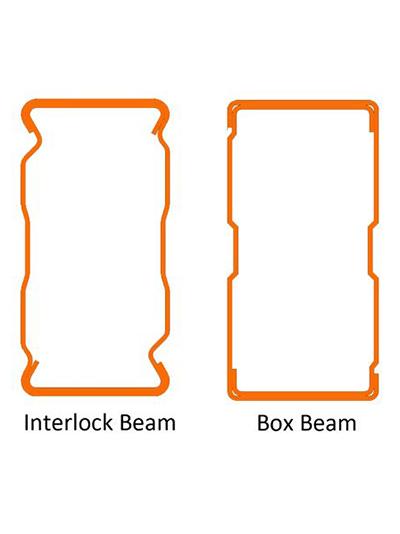

Qifei Storage offers two cross-section profiles for beams – interlocking beams and box beams. The multi-bend design upgrades the rebar to beams of various sizes, while greatly reducing the mechanical side effects of deformation that have been shown in the past on long materials. Under the same load-bearing capacity, different profiles will meet the needs of different markets and thus meet customer preferences.

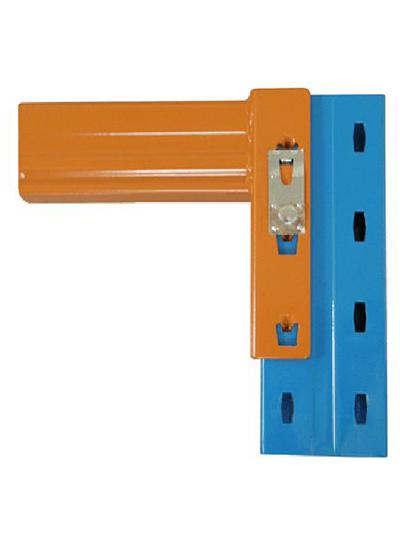

Beam Connector
According to the beam section size, 3-hole or 4-hole hooks can be selected to meet different bearing capacity requirements. There is a safety lock at the connection to lock the beam. The safety lock is pre-installed at the factory, which improves the installation work efficiency and avoids the safety problem without a safety lock.
During the operation, since the forklift hits the beam, as long as the safety lock is not ejected, the beam will still be stuck on the column. Security risks can thus be avoided.



Customization:

Packing and Shipping:

Product Packaging:
The Heavy Duty Pallet Racking product will be packaged in sturdy cardboard boxes and shipped on pallets to prevent damage during transportation.
Shipping:
Shipping will be arranged by our logistics partner and will be delivered to your doorstep within 7-10 business days. Please ensure that the delivery address provided is correct and accessible for delivery trucks.
