Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System

  • Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System
  • Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System
  • Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System
  • Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System
  • Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System
  • Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System
  • Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System
  • Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System
Place of Origin China
Brand Name Qifei
Certification ISO9001；CE；SGS
Model Number Push back pallet racking
Document Product Brochure PDF
Minimum Order Quantity 10
Price 50
Packaging Details Standard Export
Delivery Time 20 days after deposit
Payment Terms 30% deposit, 70% before delivery
Supply Ability 8000ton/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Surface Treatment Epoxy Electrostatic Powder Coating Customization Can Be Tailored To Fit Specific Warehouse Needs
Color Customized Space Utilization High-density Storage
Port NANJING/SHANG HAI PORT Scale Heavy Duty
Weight Capacity 1000-4000kg/layer,6000-21000kg/bay Steel Number Steel Q235b
Height 3000-14500mm Compatibility Compatible With Forklifts And Pallet Jacks
Storage Type First-in, Last-out
Highlight

maximized space push back pallet racking

,

push back pallet racking rust resistant

,

maximized space push back racking system
Leave a Message
Product Description

Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System

Product Description:

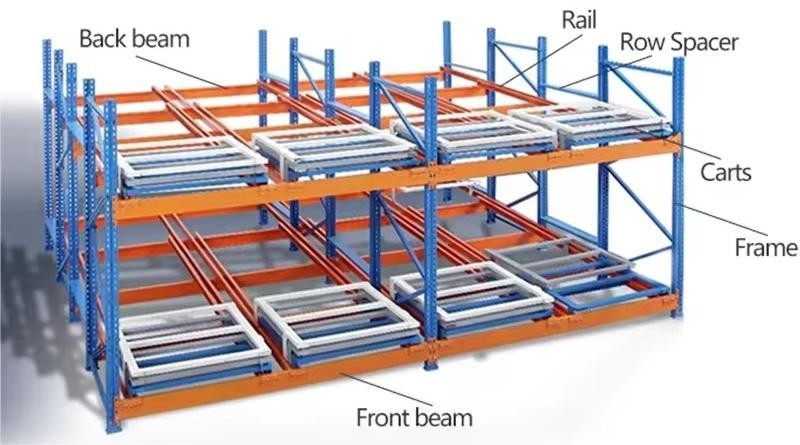

Push-back racking is composed of pallet rack and combined with trolley and around 2° guide rail. The push back pallet rack uses heavy-duty carts to form 2 to 5-pallets-deep configurations, single pallet loading capacity is less than 1000kg.



The key advantages include:
Increased storage density: By allowing pallets to be stored multiple deep, push-back racking can increase storage capacity by 30-50% compared to standard selective pallet racking.
Efficient forklift operations: The sloped rail and nested carts make it easy for forklifts to load and unload pallets, improving productivity.
Damage reduction: The nested cart design helps protect the stored goods from potential forklift impacts.



Applications:

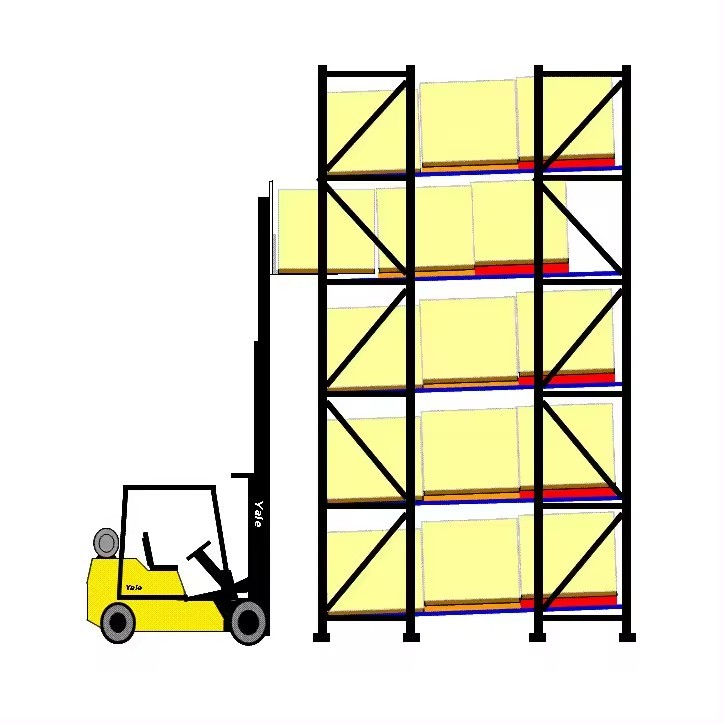

1. Sloped rail system:
The racking has a slight downward slope, allowing pallets to be easily moved in and out.

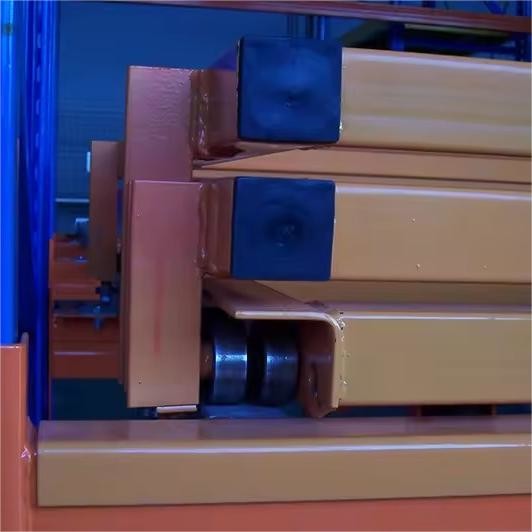

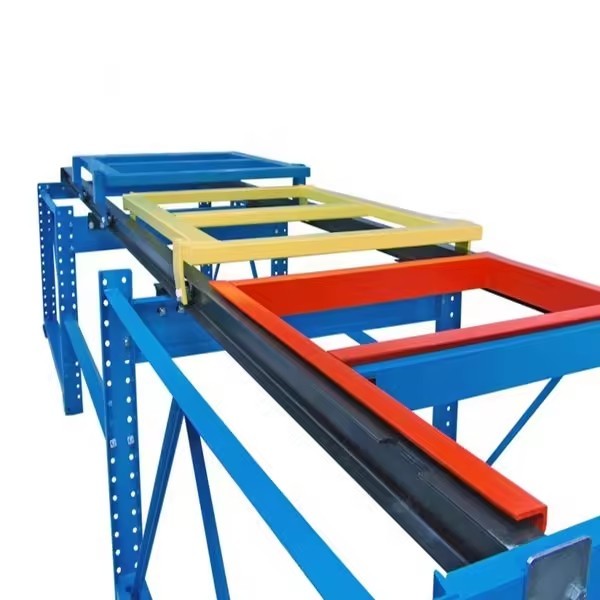

2. Nested carts:
Wheeled carts are used to hold the pallets. These carts can be nested within each other, allowing multiple pallets to be stored in the same storage location.

3. Nested carts:
Wheeled carts are used to hold the pallets. These carts can be nested within each other, allowing multiple pallets to be stored in the same storage location.





Customization:

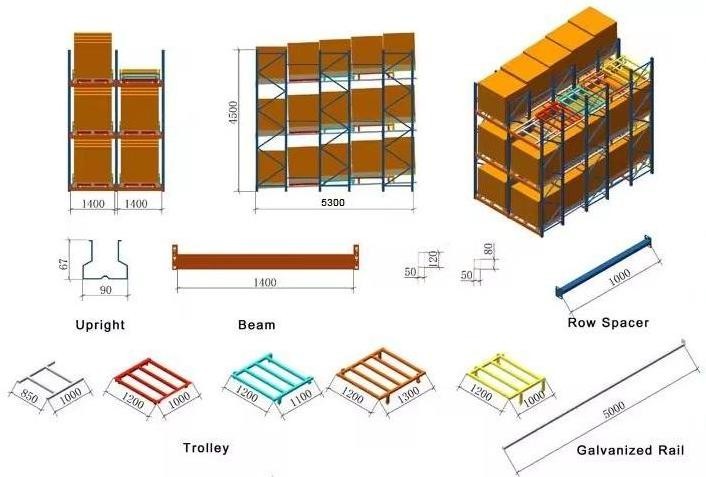

Style  Warehouse Storage Pallet Rack
Dimension  Standard Pallet:1200*800 / 1200*1000 / 1100*1100 / 1066*1220
Depth:1000MM / 900MM / 1020MM
Width: 2700MM / 2300MM / 2500MM / 2432MM
Height::pitch is adjusted by increments of 75mm
Customized Pallet:contact us directly
Upright  80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75; 120*75; 120*87mm,
Thickness:1.5~3.0mm
Beam  Height:80~160mm;
Width:45mm/50mm;
Thickness:1.5~2.5mm
Material  Q235B
OEM&ODM  Available
Surface Treatment  Galvanized/Powder Coating
Color  Customized
Sample  Available
General Use  Warehouse Shelving/Rack, etc.

Support and Services:

Push Back Pallet Racking systems are designed to provide maximum storage density by utilizing the space above your warehouse floor.



Our technical support team is available to assist with any questions or issues related to the installation, operation, or maintenance of our product.



Additionally, we offer a range of services including system design and layout, installation, and ongoing maintenance to ensure your racking system continues to operate at peak efficiency.



Our team of experts is dedicated to providing reliable and responsive support to ensure your satisfaction with our product.



Packing and Shipping:

Product Packaging:

  • The Push Back Pallet Racking will be securely packaged to prevent damage during transportation.
  • The packaging will also include assembly instructions and necessary hardware.Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System 0

Shipping:

  • The Push Back Pallet Racking will be shipped via a reputable freight carrier.
  • Customers will receive a tracking number to monitor the status of their shipment.Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System 1Maximized Space Push Back Pallet Racking Rust Resistant Heavy Duty Storage System 2
