Automated Storage And Retrieval Systems Pallet Rack Heavy Duty Steel With USD Payment
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | QF-ASRS | Material | Steel |
|---|---|---|---|
| Structure | Rack | Type | Multi-Level Racking |
| Mobility | Fixed | Height | >15m |
| Closed | Open | Development | Conventional |
| Serviceability | Common Use | Color | Customized |
| Lead Time | 25 Days | Raw Material | Q235 |
| Surface Treatment | Powder Coating | Transport Package | Standard Export |
| Specification | 500-2000 Square Meter | Trademark | Customized |
| Origin | China | HS Code | 730890 |
| Package Size | 1000.00cm * 1000.00cm * 1000.00cm | Package Gross Weight | 100.000kg |
| Customization | Available | After-sales Service | Available |
| Warranty | 1 Year | Shipping Cost | Contact The Supplier About Freight And Estimated Delivery Time. |
| Support Payment In USD | Secure Payments | Every Payment You Make At Made-in-china.com Is Protected By The Platform. | |
| Refund Policy | Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. | ||
| Highlight | Retrieval Systems Pallet Rack,Automated Storage Pallet Rack |
||
Product Description
The product price is only a reference because of the shelf specifications, bearing capacity and other difference.
Please be sure to contact our customer service to verify the relevant technical parameters before shooting, we will program and quote accurately according to the technical parameters.
-------------------------------------------------------------------------------------------------------------------QiFei--Your Best Choice For Warehouse Storage
-------------------------------------------------------------------------------------------------------------------
Please be sure to contact our customer service to verify the relevant technical parameters before shooting, we will program and quote accurately according to the technical parameters.
-------------------------------------------------------------------------------------------------------------------QiFei--Your Best Choice For Warehouse Storage
-------------------------------------------------------------------------------------------------------------------

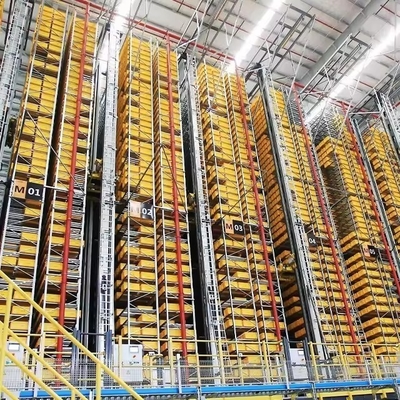

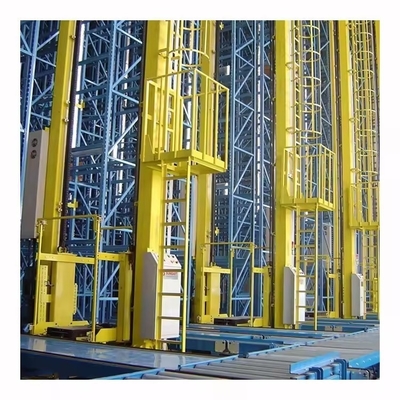

Crane Racking/(AS/RS)
Crane Racking,also known as automated storage/retrieval systems (AS/RS), is a fully automated storage system, ideal for storing pallets and large items.Designed to work within very narrow aisles and at a height of more than 30 metres, crane racking is an efficient, optimised storage solution.
Guided by a management software system, the crane travels along the aisles of the warehouse, where it enters, positions and extracts the goods.
For multi-deep configurations, crane racking is equipped with a shuttle which retrieves the pallet and delivers it directly to the front - ensuring maximum accessibility.
Crane Racking is designed to offer complete flexibility, from load capacity and building height, to cycle times and temperature control. The system adapts easily to the needs of each warehouse making it a highly effective storage solution for a vast range of applications.
| Required information for quote |
| 1, The AUTOCAD drawing or draft drawing of warehouse or racking. |
| 2, Length, Height, and Width of the warehouse. |
| 3, Layers of the racking |
| 4, Pallet size. |
| 5, Max weight of pallet with cargo on. |
| 6, Color requirement. |
ASRS RACKING SYSTEM
(SINGLE-DEEP & DOUBLE-DEEP)
Automated Storage for Pallets & Large Loads with Stacker Crane AS/RS Systems
- Single-deep - One pallet or load is stored in each storage position in the racking.
- Double-deep - Two loads or pallets are stored in each storage position in the racking, one behind the other to increase storage density.
(SINGLE-DEEP & DOUBLE-DEEP)
Automated Storage for Pallets & Large Loads with Stacker Crane AS/RS Systems
- Single-deep - One pallet or load is stored in each storage position in the racking.
- Double-deep - Two loads or pallets are stored in each storage position in the racking, one behind the other to increase storage density.
Product specifications
1.Fully automatic, fast and safe
2.High throughput speed - dramatically reduces picking times
3.Maximum height utilisation - ensures all available space is fully optimised
4.Stock management system controls and updates the goods inventory - ensuring precise control of goods and eliminating manual operating errors
5.Easily adapts to special working conditions - from freezing temperatures (-30 °C) to extreme humidity
1.Fully automatic, fast and safe
2.High throughput speed - dramatically reduces picking times
3.Maximum height utilisation - ensures all available space is fully optimised
4.Stock management system controls and updates the goods inventory - ensuring precise control of goods and eliminating manual operating errors
5.Easily adapts to special working conditions - from freezing temperatures (-30 °C) to extreme humidity
6.30+ metres height
How They Work

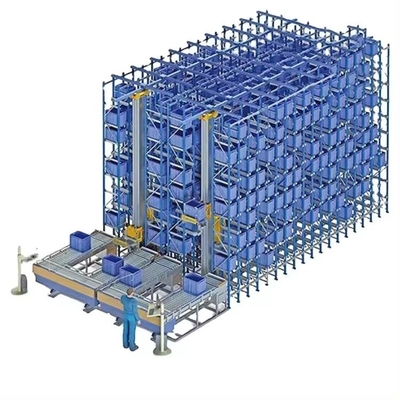

Automated Storage and Retrieval Systems (ASRS) typically consist of
--a rack structure,
--stacker cranes,
--system control software (such as WCS),
--a conveyor or AGV interface
for load transportation to and from the ASRS.The most common type of unit load ASRS employs narrow, fixed-width aisles.

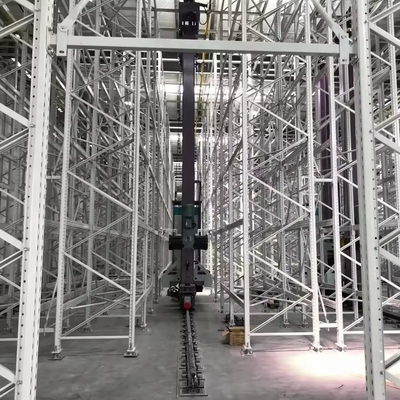

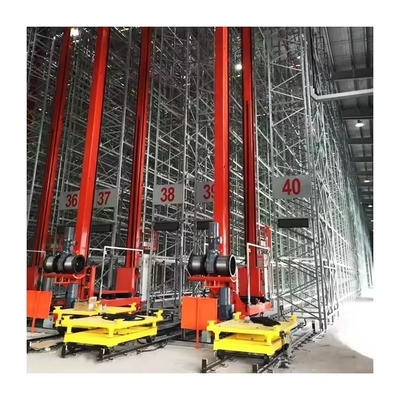

These systems are designed to automatically move pallets or large loads in and out of storage locations. The crane moves along the storage racks, traversing the aisle vertically, while a load-handling device or carriage moves up and down the crane's tall mast to reach the appropriate shelf height.
When the designated storage location is reached, the load handling device on the crane utilizes a mechanism to either pick up or deposit the load, depending on the task at hand. For deep lane storage, shuttles can be utilized alongside cranes to travel into the storage aisle, facilitating the pickup or deposit of loads and enabling even denser multi-deep pallet storage.
Subsequently,the crane returns to the end of the aisle, where the load is deposited for further processing or a new load is picked up.
--a rack structure,
--stacker cranes,
--system control software (such as WCS),
--a conveyor or AGV interface
for load transportation to and from the ASRS.The most common type of unit load ASRS employs narrow, fixed-width aisles.
These systems are designed to automatically move pallets or large loads in and out of storage locations. The crane moves along the storage racks, traversing the aisle vertically, while a load-handling device or carriage moves up and down the crane's tall mast to reach the appropriate shelf height.
When the designated storage location is reached, the load handling device on the crane utilizes a mechanism to either pick up or deposit the load, depending on the task at hand. For deep lane storage, shuttles can be utilized alongside cranes to travel into the storage aisle, facilitating the pickup or deposit of loads and enabling even denser multi-deep pallet storage.
Subsequently,the crane returns to the end of the aisle, where the load is deposited for further processing or a new load is picked up.
PACKAGE
SHIPMENT
Jiangsu Qifei Intelligent Storage Equipment Co., Ltd, established in 2020, is one of the leading manufacturer which specialized in designing & manufacturing industrial warehouse storage racks, automation warehouse system and professional logistics equipment, we aim to provide cost-effective and space utilization storage solutions for all customers worldwide .
We have powerful R&D teams,including 8 experienced design engineers.
Qifei's workshop equipped with 6 automatic production lines of rolling and curved steel and two static powder coating lines, which ensures the high quality of our products. All our products and operation are ISO:9001 certified , and all our racks / shelving are approved by SGS company .
Our main products are heavy duty rack, medium duty rack, light duty rack, cantilever rack, mezzanine floor, drive in rack, and so on.
Welcome to visit our company.
Q: Are you manufacturer or trading company?
A: We are experienced manufacturer in the warehouse storage industry.
Q: How is your delivery time?
A: Generally, it is within 25 days against formal order and deposit. It also depends on other factors such as order quantity.
Q: What is the payment term?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: What is your terms of delivery?
A: EXW, FOB
Q: Are samples available?
A: Yes, We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: What is the minimum order quantity?
A: Generally, MOQ is 10sets.
Q: Can I make my own brand and designed products?
A: Yes, we do both OEM and ODM, so you can make your own product with your own logo.
Q: Where is your factory? Can I visit it?
A: Our factory located in Nanjing, Welcome to visit our factory. We can arrange pick-up from the airport or train station for you.
Q: What parameters do I need to provide for an accurate quotation?
1) Quantity(set)
2) Size: Length*Width*Height (mm) or samples or technical drawings
3) Load capacity per layer(kg)
4) Number of layers
Q: What is the material being used for your products?
A: Mild steel Q235.
Q: I don't have drawing or picture available for the products, could you design it for me?
A: Yes, we can make the best suitable design for you but need to know more details.
Q: Do I get any guarantee from your company?
A: 3~10 years warranty
Q: How do you make our business long-term and good relationship?
A: Quality makes trust and reputation, plus competitive price to ensure our customers benefit ;
