Powder Coated 3-6 Arms Heavy Duty Cantilever storage rack System

  • Powder Coated 3-6 Arms Heavy Duty Cantilever storage rack System
  • Powder Coated 3-6 Arms Heavy Duty Cantilever storage rack System
  • Powder Coated 3-6 Arms Heavy Duty Cantilever storage rack System
  • Powder Coated 3-6 Arms Heavy Duty Cantilever storage rack System
  • Powder Coated 3-6 Arms Heavy Duty Cantilever storage rack System
  • Powder Coated 3-6 Arms Heavy Duty Cantilever storage rack System
Place of Origin China
Brand Name Qifei
Certification ISO9001
Model Number Cantilever
Document Product Brochure PDF
Minimum Order Quantity 10
Price $10-15
Packaging Details Standard Export
Delivery Time 20 days after deposit
Payment Terms 30% deposit, 70% before delivery
Supply Ability 8000ton/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Maximum Weight 1500kgs Usage Heavy Duty Storage
Number Of Arms 3-6 Types Single Or Double Sided
Finishing Powder Coated Depth 36-48 Inches
Dimension Different Sizes Are Available Base Length 1100mm-2100mm Or Customized
Highlight

powder coated cantilever rack storage

,

powder coated cantilever storage rack system

,

6 arms cantilever rack storage
Leave a Message
Product Description

Product Description:

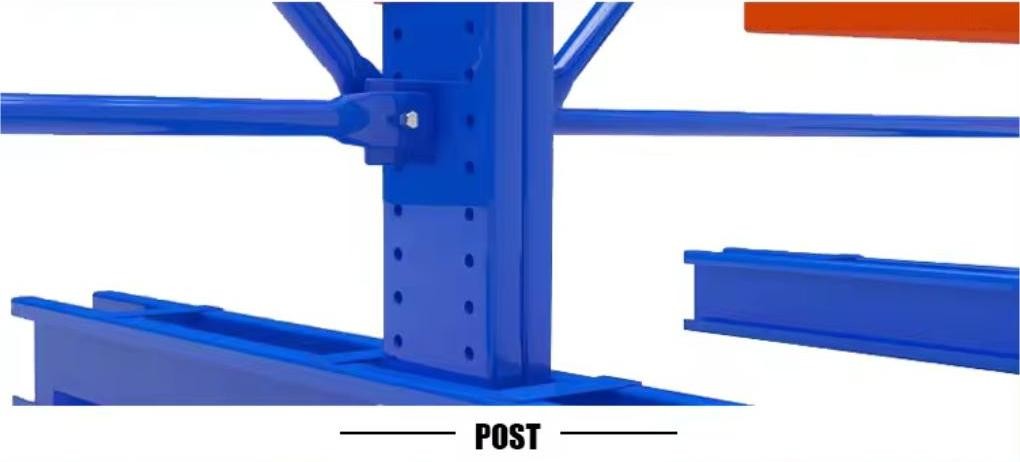

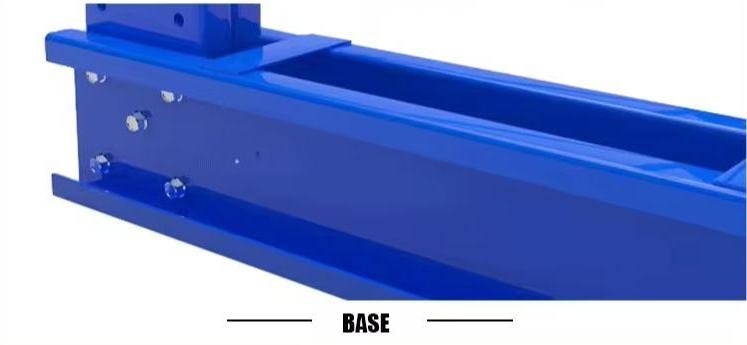

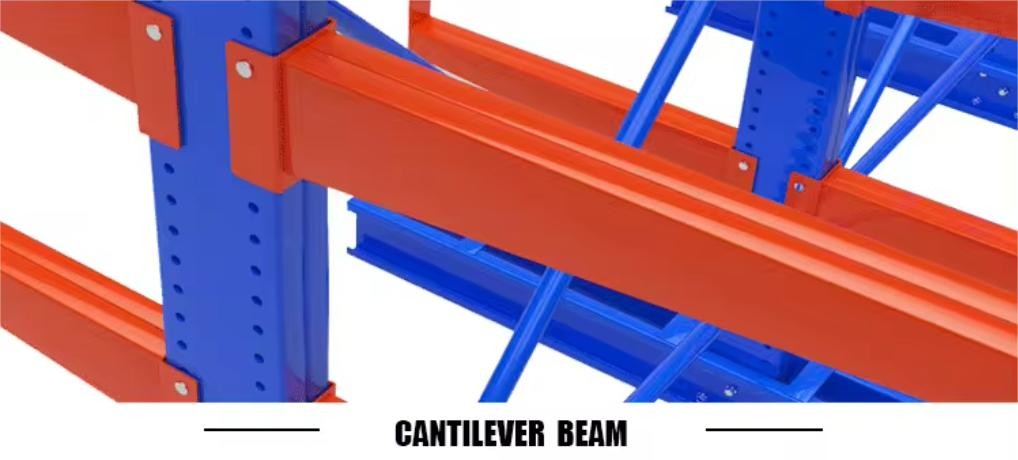

Also called H beam cantilever rack, Mainly consists of column, base, arm, straight brace and "X" brace.

Features&Benefits

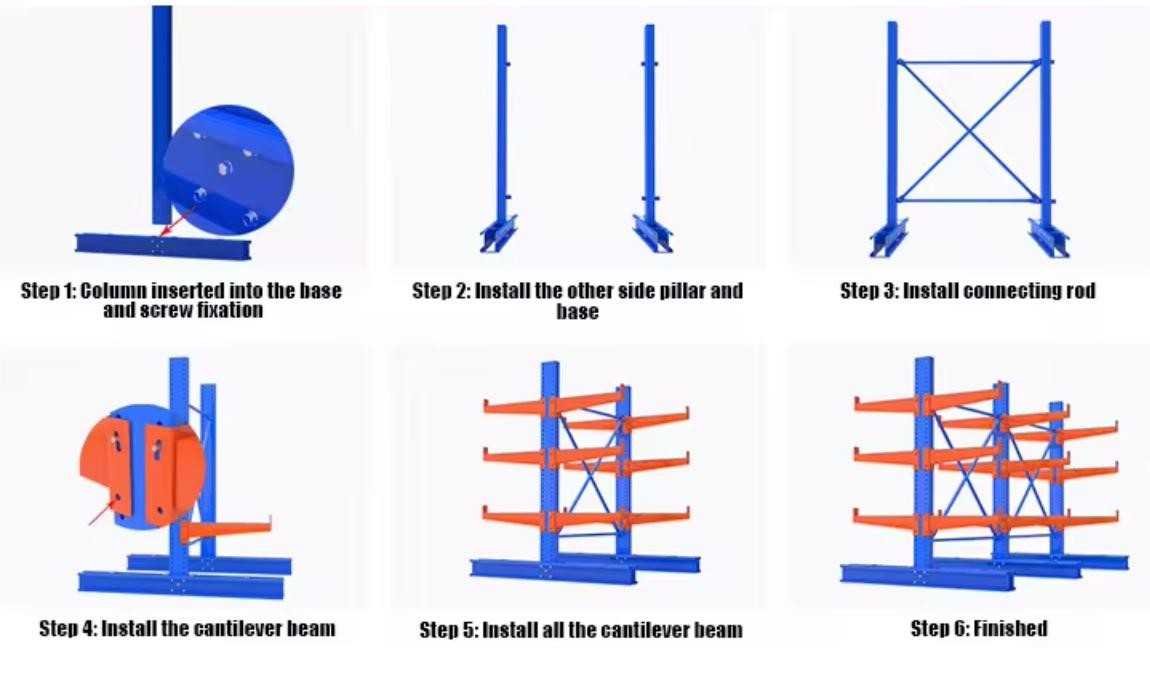

1) Simple structure, easy and quick assembled and disassembled

2) Single and double sided configuration available

3) Mainly used for the storage of long stuff such as rolled section steel, steel tube, plates, wire lines and so on.

4) Bolted arm and base connection
5) Made of H type steel or cold rolling steel or frame or square tube
6) Loading and unloading of goods can be done manually or by forklifts.

7) Selective: direct access to each goods
8) The height of cantilever racking is usually lower than 2500mm; Length of arm is shorter than 1200mm, and loading capacity is no more than 1200kg per arm.
9) Cantilever racking is mainly used in the Mechanical Manufacturing Industry and markets for building materials.



Features:

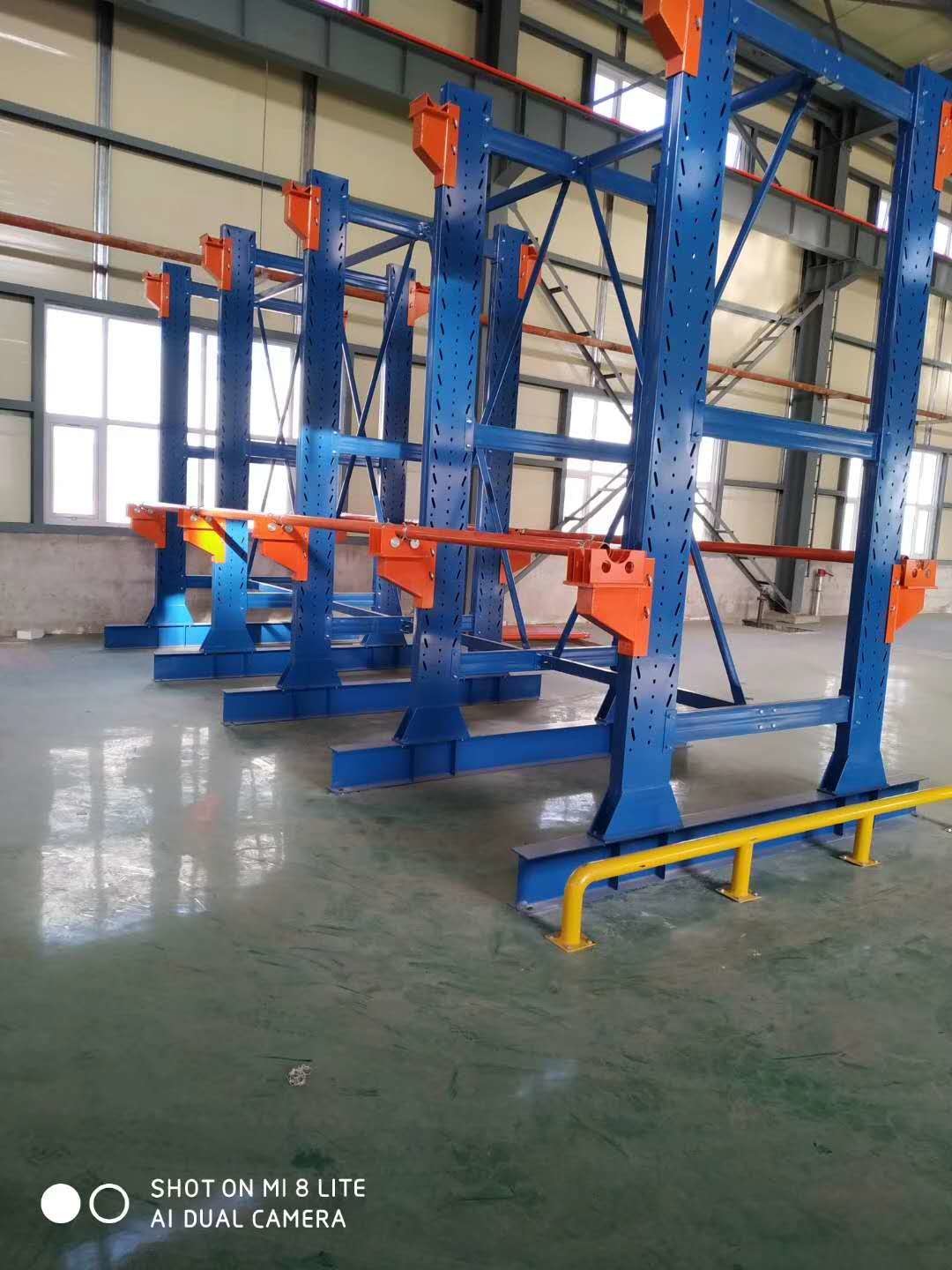

This Cantilever rack is perfect for storing long, bulky items such as lumber, pipes, and tubing.

With its cantilever arm design, it allows for easy access to all stored items.

Available in different sizes and with 2-5 levels, this Cantilever storage rack can be customized to fit your specific needs.

It is powder coated or galvanized to provide surface antirust protection, ensuring its durability and longevity.



Technical Parameters:

Level 2-5 Levels
Maximum Weight 1500kgs
Surface Treatment Powder Coated Or Galvanized
Base Length 1100mm-2100mm Or Customized
Height 8-20 Feet
Depth 36-48 Inches
Rust Surface Antirust
Usage Heavy Duty Storage
Number Of Arms 3-6
Color Customized



Support and Services:

The Cantilever Racking product technical support and services provided include:

- Assistance with installation and assembly

- Troubleshooting and problem-solving

- Maintenance and repair services

- Training on proper use and safety precautions

- Consultation on custom design and configuration

- Upgrades and modifications for existing systems



Packing and Shipping:

Product Packaging:

The Cantilever Racking product will be packaged with Wrapped film and wooden pad to ensure safe transportation. The product will be disassembled and all necessary hardware will be included in the package along with an instruction manual.

Powder Coated 3-6 Arms Heavy Duty Cantilever storage rack System 0

Shipping:

The Cantilever Racking product will be shipped via a trusted shipping carrier.

Once the product is shipped, a tracking number will be provided to the customer so they can track their package during transit.

Powder Coated 3-6 Arms Heavy Duty Cantilever storage rack System 1
