High Density FILO Drive In Pallet Racking Corrosion Protection Customized
| Place of Origin | China |
|---|---|
| Brand Name | Qifei |
| Certification | ISO9001；CE；SGS |
| Model Number | Drive in pallet racking |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 10 |
| Price | 50 |
| Packaging Details | Standard Export |
| Delivery Time | 20 days after deposit |
| Payment Terms | 30% deposit, 70% before delivery |
| Supply Ability | 8000ton/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Safety Features | Backstops, Floor Guides, Column Protectors | Compatibility | Compatible With Forklifts |
|---|---|---|---|
| Surface Treatment | Epoxy Electrostatic Painting | Port Of Loading | Nanjing/Shanghai |
| Storage Density | High | Materials | Steel Q235 |
| Usage | Warehouse Storage System | Feature | Corrosion Protection |
| Load Capacity | Up To 2000kg Per Pallet | Pitch Holes | 75mm Square Hole |
| Access Type | FILO Or LIFO | Durability | Long-lasting And Sturdy |
| Size | Customized | Customizable | Can Be Tailored To Specific Needs |
| Structure | Dismountable Structure | Loading Capacity | 1000-3000 Kg Per Level |
| Highlight | drive in pallet racking corrosion protection,high density drive in pallet racking,FILO Access warehouse storage pallet racking |
||
Product Description

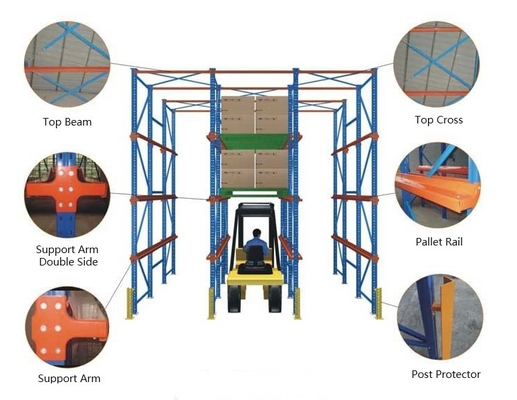

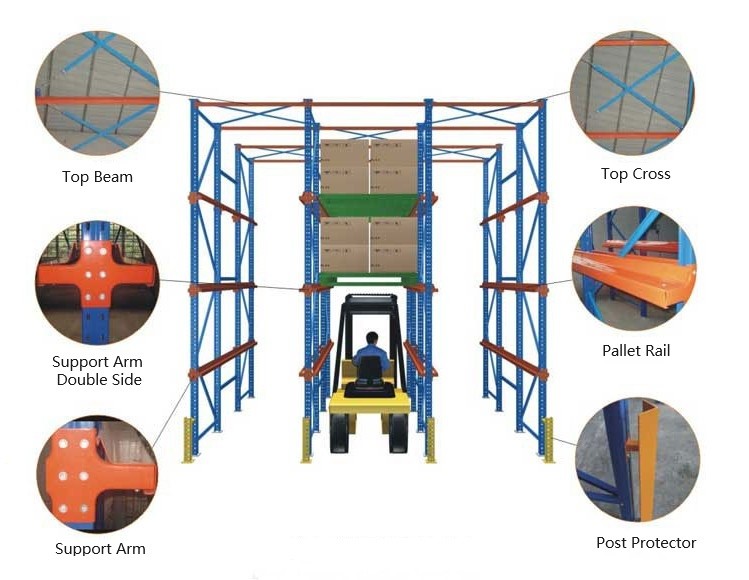

High Density FILO Drive-in Pallet Racking Customized for Your Warehouse Efficiency
Product Description:

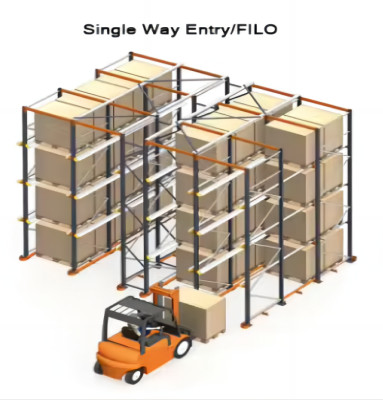

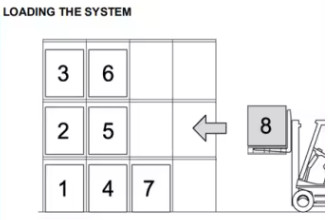

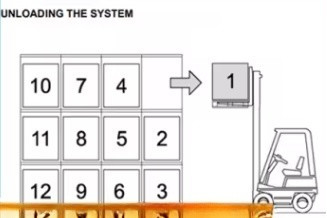

Drive-through pallet racking allows forklifts to drive through the rack bays from one end to the other. This configuration is ideal for warehouses that require the FILO (first in, Last out) method or Last-in First-out (LIFO) of inventory management.
The drive-in pallet racking system is compatible with forklifts and can be tailored to suit specific warehouse needs.
It is surface treated with epoxy electrostatic painting to ensure durability and resistance to wear and tear. This coating also protects the racking from corrosion, making it suitable for use in a wide range of environments.
Applications:

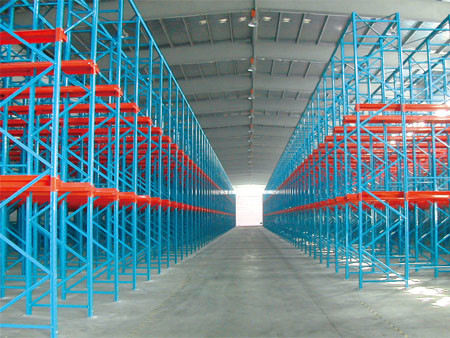

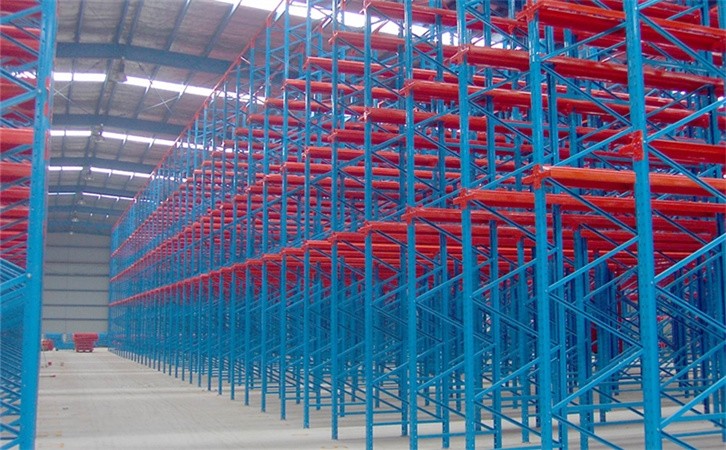

The Drive-in Pallet Racking is perfect for occasions where a high storage density is required.
This is particularly useful for companies that need to store large quantities of the same product.
The pitch holes of 75mm square hole make it easy to install and adjust the shelves to fit your specific needs.
Our Drive-in Pallet Racking is also equipped with safety features such as backstops, floor guides, and column protectors to ensure that your products and employees remain safe at all times.
The racking is made of high-quality materials sourced from China, making it durable and long-lasting.
Customization:

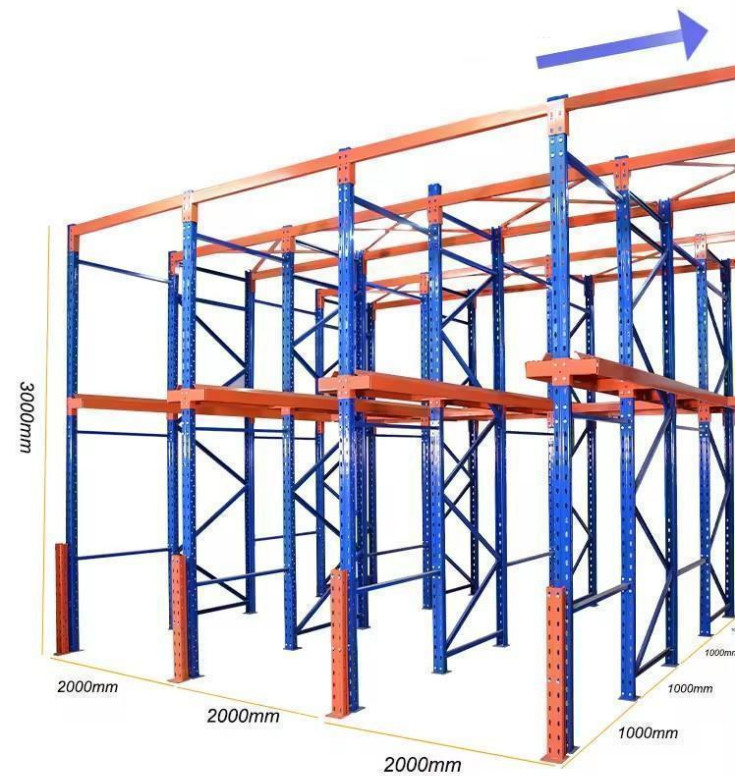

| Dimensions | standard pallet size 1200x1000 / 1200x1200 / 1100x1100 / 1200x800mm |
| Loading | 2000KG per pallet(max) |
| Stacking levels | 4 beam levels |
| Thickness section | upright 88*68 / 100*68mm; beam 80~100*45 |
| Colour | Blue, orange, Yellow and Grey or customized |
| Custom design | Accpeted |
| Surface treatment | Galvanized/Powder Coating |
| Quality&Services | 1. Free customized design 2. Installation Instructions provided. 3. Quality cerfiticate at least 5 years. 4. We will deliver back-up accessories for maintenance along the container. |
Support and Services:
Our Drive-in Pallet Racking product is designed to maximize your storage space by allowing forklifts to drive directly into the racking system to retrieve and store pallets.
Our technical support team is available to assist with any questions or issues you may have with installation, maintenance, or repairs of the system.
We also offer services such as system design and layout, as well as safety inspections to ensure that your racking system is operating efficiently and safely.
Packing and Shipping:
Product Packaging:
- The Drive-in Pallet Racking will be securely packaged in heavy-duty cardboard boxes.
- All necessary hardware and assembly instructions will be included in the package.
Shipping:
- The Drive-in Pallet Racking will be shipped via a freight carrier.
- Shipping fees will vary based on the destination and weight of the package.
- Shipping times will vary based on the destination and carrier.
FAQ:
| 1, Under which situation should we use drive in pallet rack? |
| For inventory with less categories and large quantities for eack category. |
| 2, How many depth do you plan along each drive in aisle? |
| For single entry, we suggest no more than 7. For double entry, we suggest no more than 13. |

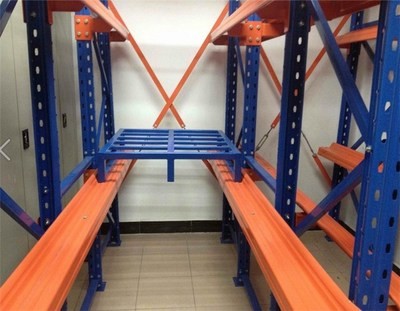

| 3, what kind of pallet can we use in drive in pallet rack? |
| pallets with double faced, pallets with three runners base. Single faced, 9 feet or any plate based will be prohibited. |
| 4, How about the installation? |
| It will take 5-6 persons to do installation. We have installation drawing for you to follow,it will be easy to carry out project installation if you follow our instruction. |
